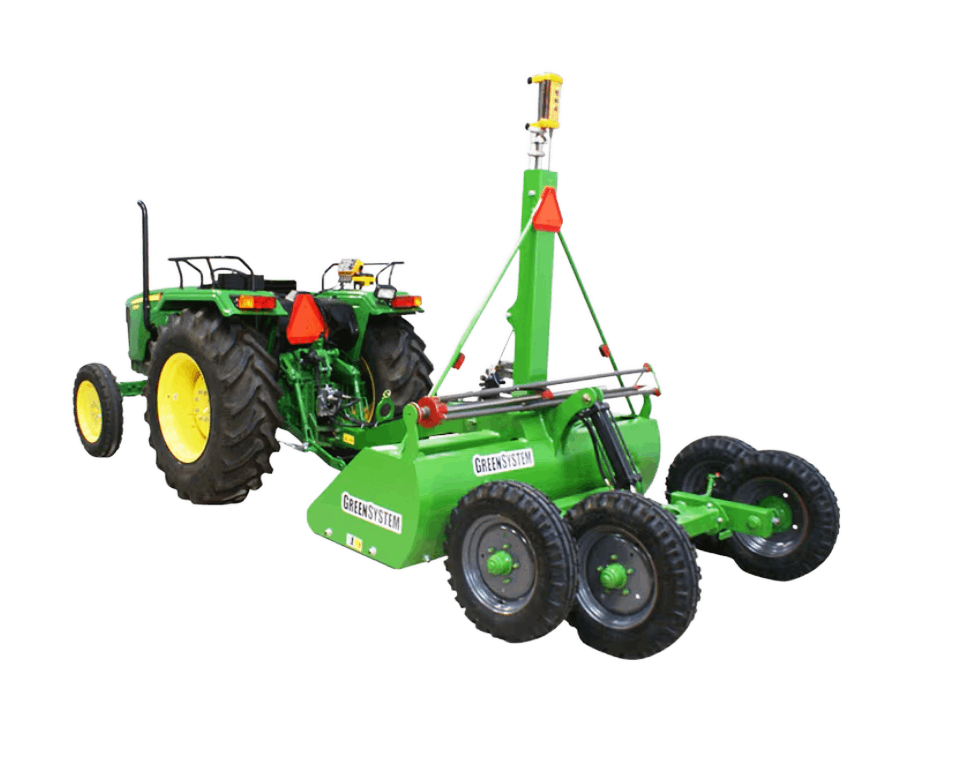

GreenSystemâ„¢ Laser Leveler

GreenSystem Laser Leveler is a technologically advanced tractor attachment that enables leveling of the field within certain degree of desired slope using a guided laser beam throughout the field. It is best suited for crops like Paddy Potato.

Look Out For:

  • Uniform distribution of water on uneven terrains
  • Efficient Labour utilization and Low time consumption
  • Highly Durable and Low maintenance cost
  • Leveling plate helps in levelling the puddled soil.
  • Control unit is provided with finger tip control which helps you to maintain the accuracy and comfortable operating experience.
  • Alternate Battery for more working hour.
  • Separate hydraulic pump for hydraulic oil flow.
  • Pump uses separate oil from oil sump so avoids the oil contamination from tractor transmission or hydraulic system oil.
  • The sensor captures readings during surveying to compute the Mean value at Control Panel
  • Distance between Pointer & sensor is 5cm
  • Saves time and labor in surveying the field.
  • Self-adjusting during leveling operation
  • Inbuilt Oil Tank
  • Higher capacity of hydraulic cylinder 4 MT
  • More soil working capacity through bucket
  • High quality and durable seals of cylinder helps in less maintenance cost of cylinder

Laser Leveler Specifications
Bucket 2000 (W) x 600 (D) x 800 (H) mm
Mainframe, Square Pipe 127 x 127 mm
Main Sheet Thickness 8 mm
Side Sheet Thickness 10 mm
Reversible Main Blade, Alloy Steel 2000 x 125 x 12.5 mm
Reversible Side Blade, Alloy Steel 600 x 125 x 12.5 mm
Laser Transmitter Range 1300 m
Accuracy ±1.5 mm / 30 m
Power Source: 4 cells / 80 hrs
Optional: 12V 7 Amp external battery
Rechargeable Batteries 2 nos
Minimum Tractor HP Required 50 HP
Tyre Size 6 x 16, 8 PR
Hydraulic Cylinder & Capacity Double Acting, 4 metric tons
