- Power Steering
- Side Shift Gear Levers
- Lifting Capacity
- Collar Shift Gear Box
- Oil Immersed Disc Brake

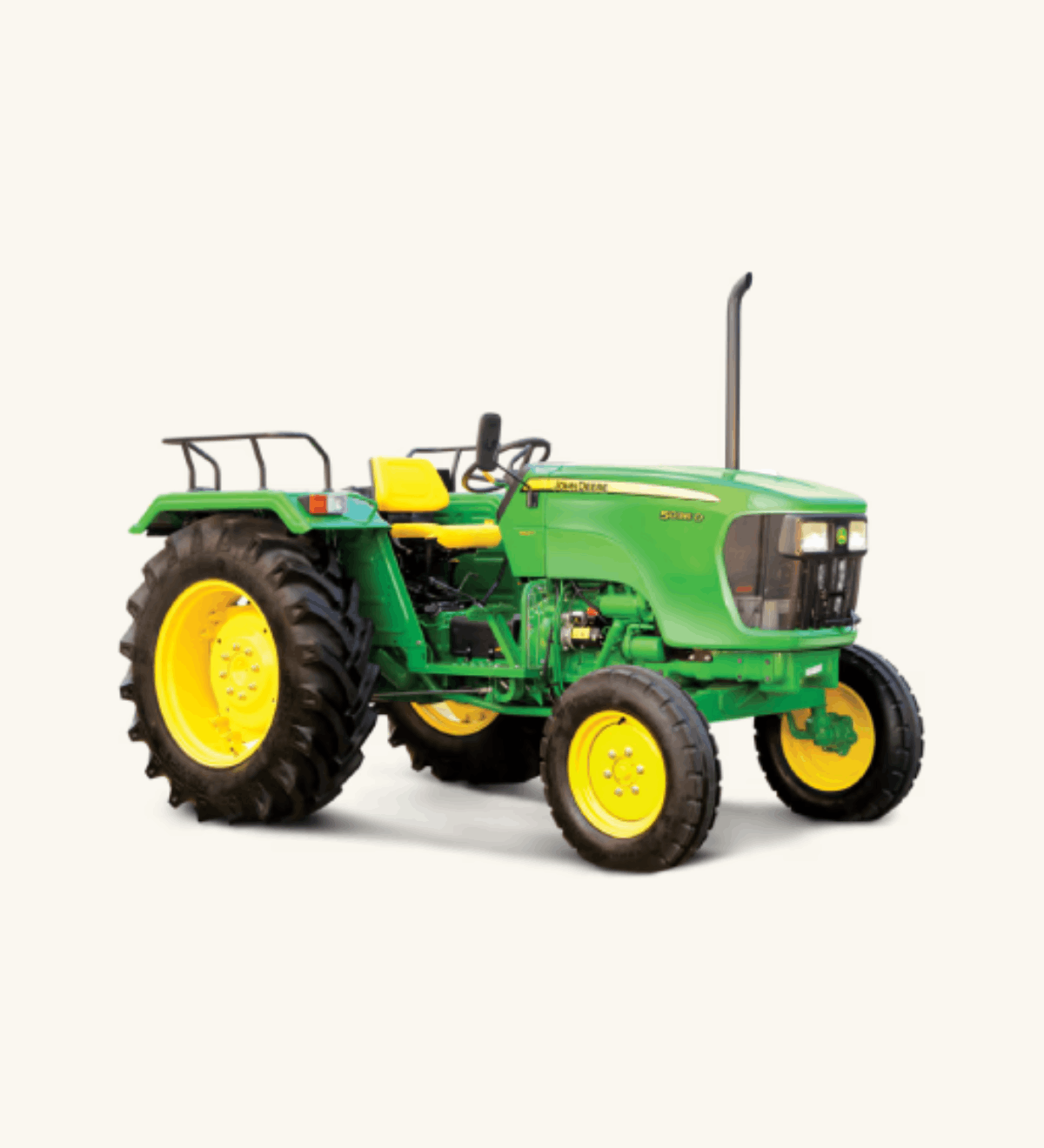

5036D
36HP, 2100 RPM
Modern and technologically advanced, John Deere tractor 5036D offers unmatched efficiency at a competitive tractor price. This multipurpose agricultural tractor is best suitable for all farming and haulage applications.
Look Out For:
- Power steering increases productivity for long working hours.
- Collar Shift Gear Box for more life and less maintenance
- Side Shift Gear Levers for ease of operation and higher comfort
| Engine | |
| Type | John Deere 3029D, 36 HP (26.8 kW), 2100 RPM, 3 Cylinders, Coolant cooled with overflow reservoir, Naturally aspirated |
|---|---|
| Air Filter | Dry Type, Dual element |
| Transmission | |
| Clutch | Single |
| Gear Box | 8 Forward + 4 Reverse, Collarshift |
| Speeds | Forward 3.13 – 34.18 kmph Reverse 4.10 – 14.87 kmph |
| Brakes | |
| Brakes | Oil immersed disc brakes |
| Hydraulics | |
| Maximum Lifting Capacity | 1600 kgf |
| 3 Point Linkage | Category - II Automatic depth and draft control (ADDC) |
| Steering | |
| Type | Power |
| Power Take Off | |
| Type | Independent, 6 Splines |
| Standard | 540 @ 2100 ERPM |
| Wheels and Tyres | |
| Front | 6.0 x 16 (0.15 x 0.41 m), 8 PR |
