- Dual Torque Mode
- Longer service interval
- Combination Switch.
- Wider platform with rear floor extensions
- CleanPro™ for enhanced cooling

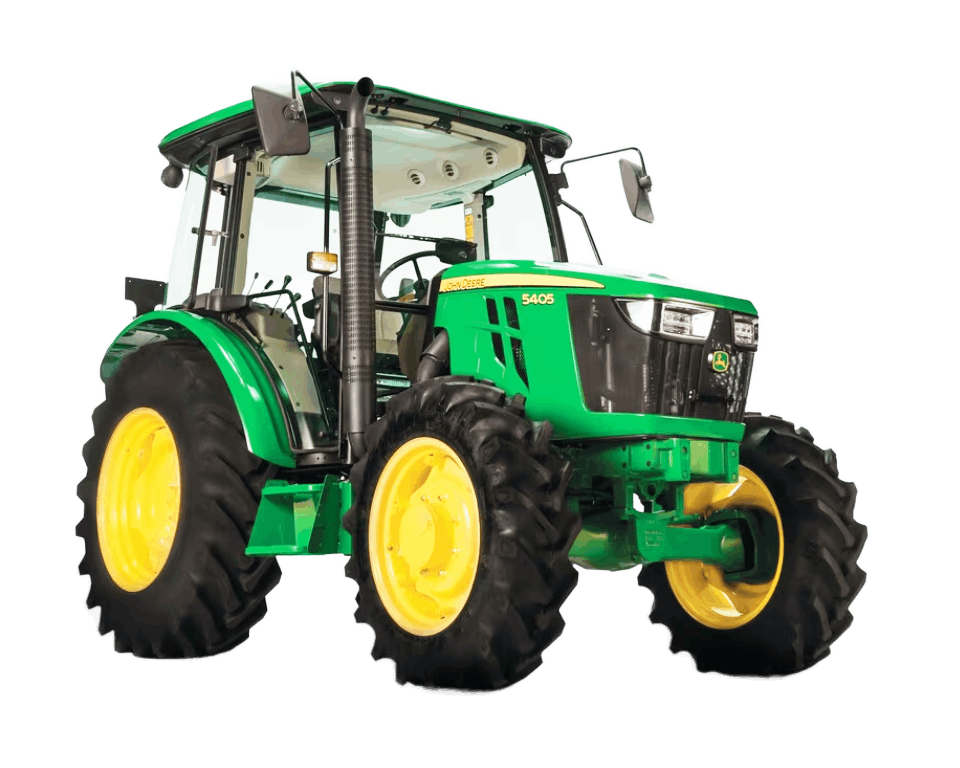

5405 PowerTech™
John Deere CAB tractors have been designed to provide the customers with a tractor that not only has an international look, but is also technologically advanced. John Deere 5405 is a powerful and versatile 63 HP tractor. Its powerful turbocharged PowerTech engine is equipped with HPCR (High Pressure common rail) electornic injectors which helps efficiently utilizing fuel and in controlling air pollution.
Look Out For:
- Wider platform with floor mat
- Combination switch
- Increased lifting capacity (2500kgs)
| Engine | |
| Type | John Deere 3029H, 57 HP (42 kW), 2100 RPM, 3 Cylinders, Turbo Charged, HPCR fuel injection system, Coolant cooled with overflow reservoir |
|---|---|
| Air Filter | Dry Type, Dual element |
| Transmission | |
| Clutch | Dual clutch, Dry clutch, EH clutch (optional) |
| Gear Box | 12F + 4R (GearPro Speed) 12F + 12R (PowrReverser Speed) 9F + 3R (Creeper Speed) |
| Speeds | GearPro Speed- 1.9 to 32.6 Kmph, PowerReverser Speed- 1.4 to 31.3 Kmph and Creeper Speed- 0.35 to 0.87 Kmph. |
| Brakes | |
| Brakes | Oil immersed disc brakes |
| Hydraulics | |
| Maximum Lifting capacity | 2000 Kgf 2500 Kgf (Optional) |
| Steering | |
| Type | Power steering / Tilt steering option (Open operator station), Power steering / Tilt & Telescopic steering (Cab) |
| Power Take off | |
| Type | Independent, 6 Splines |
| Standard | 540 @ 2100 ERPM |
| Economy | 540 @ 1600 ERPM |
| Reverse | 516 @ 2100 ERPM |
| Dimensions and Weight | |
| Total weight | 2WD : 2320 kg, 4WD : 2600 kg |
| Wheel base | 2050 mm |
| Overall length | 3678 mm |
| Overall width | 1944 mm |
| Ground clearance | 2WD : 0520 mm, 4WD : 0425 mm |
| Wheels and Tyres | |
| Front | 2WD - 6.5 x 20, 8 PR 4WD - 11.2 x 24 , 8 PR |
| Rear | 2WD - 16.9 x 30, 12 PR 4WD - 16.9 x 30, 12 PR |
| Fuel Tank | |
| Capacity | 71 ltr & Cab - 82 ltr |
| Electrical System | |
| Electrical System | 85 Ah, 12 V battery, Cold charging Amphere - 800 CCA 60 Amp, alternator 12V, 2,5 Kv starter motor |
