- Dual Torque Mode
- 500 hours of Longer service interval (Engine oil)
- Combination Switch.
- Wider platform with rear floor extensions
- CleanPro™ for enhanced cooling
5310 PowerTech™
57 HP, 2100RPM

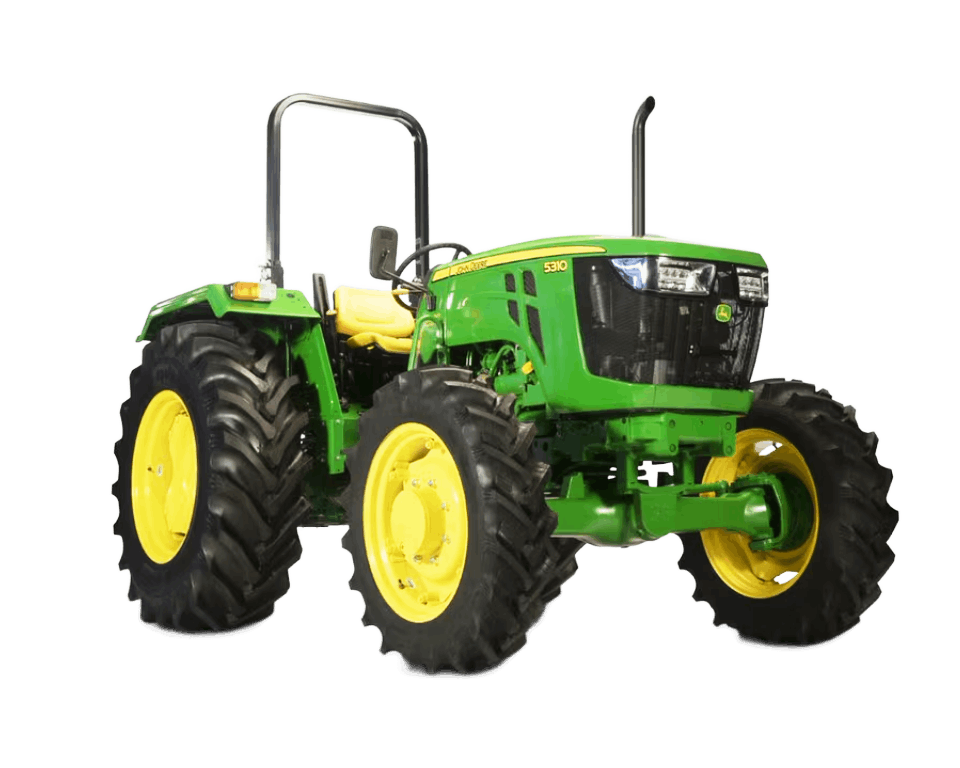

John Deere 5310 is a powerful 57 HP tractor designed with Trem IV emission technology ! Built to deliver exceptional performance, power and reliability.
Look Out For:
- Increased Lift Capacity (2500kg) to lift heaviour implements like Potato Planter, 3 Bottom reversible plough and Sugercane Infield haulage
- More speed range (12 Forward & 4 Reverse)- GearPro™
| Engine | |
| Type | John Deere 3029H, 57 HP (42 kW), 2100 RPM, 3 Cylinders, Turbo Charged, HPCR fuel injection system, Coolant cooled with overflow reservoir |
|---|---|
| Air Filter | Dry Type, Dual element |
| Transmission | |
| Clutch | Dual clutch, Dry clutch, EH clutch (optional) |
| Gear Box | 12F + 4R (GearPro Speed) 12F + 12R (PowrReverser Speed) 9F + 3R (Creeper Speed) |
| Speeds | Forward - 0.35 to 32.6 kmph (Creeper), 2.8 to 32.6 kmph (12x4 GearPRO), 1.4 to 31.3 kmph (PR) Reverse - 0.61 to 20 kmph (Creeper), 3.5 to 20 kmph (12x4 GearPRO), 1.6 to 20 kmph (PR) |
| Brakes | |
| Brakes | Oil immersed disc brakes |
| Hydraulics | |
| Maximum Lifting capacity | 2000 Kgf 2500 Kgf (Optional) |
| Steering | |
| Type | Power steering / Tilt steering option |
| Power Take off | |
| Type | Independent, 6 Splines |
| Standard | 540 @ 2100 ERPM |
| Economy | 540 @ 1600 ERPM |
| Reverse | 516 @ 2100 ERPM |
| Dimensions and Weight | |
| Total weight | 2WD : 2320 kg, 4WD : 2600 kg |
| Wheel base | 2WD : 2050 mm, 4WD : 2050 mm |
| Overall length | 2WD : 3678 mm, 4WD : 3678 mm |
| Overall width | 2WD : 2243 mm, 4WD : 2243 mm |
| Ground clearance | 2WD : 0520 mm, 4WD : 0425 mm |
| Turning radius with Brakes | 2WD : 3181 mm, 4WD : 3181 mm |
| Wheels and Tyres | |
| Front | 2WD - 6.5 x 20, 8 PR 4WD - 9.5 x 24 , 8 PR |
| Rear | 2WD - 16.9 x 28, 12 PR 4WD - 16.9 x 28, 12 PR |
| Fuel Tank | |
| Capacity | 71 ltr |
| Electrical System | |
| Electrical System | 85 Ah, 12 V battery, Cold charging Amphere - 800 CCA 60 Amp, alternator 12V, 2,5 Kv starter motor |
