- Prevent temporary overload with high engine torque.
- Piston spray jet in addition to pressure lubrication system.
- Dry-type air filter - 99.9 percent cleaning efficiency.
- Power steering.
- Oil immersed disc brakes.
5105
40HP, 2100 RPM

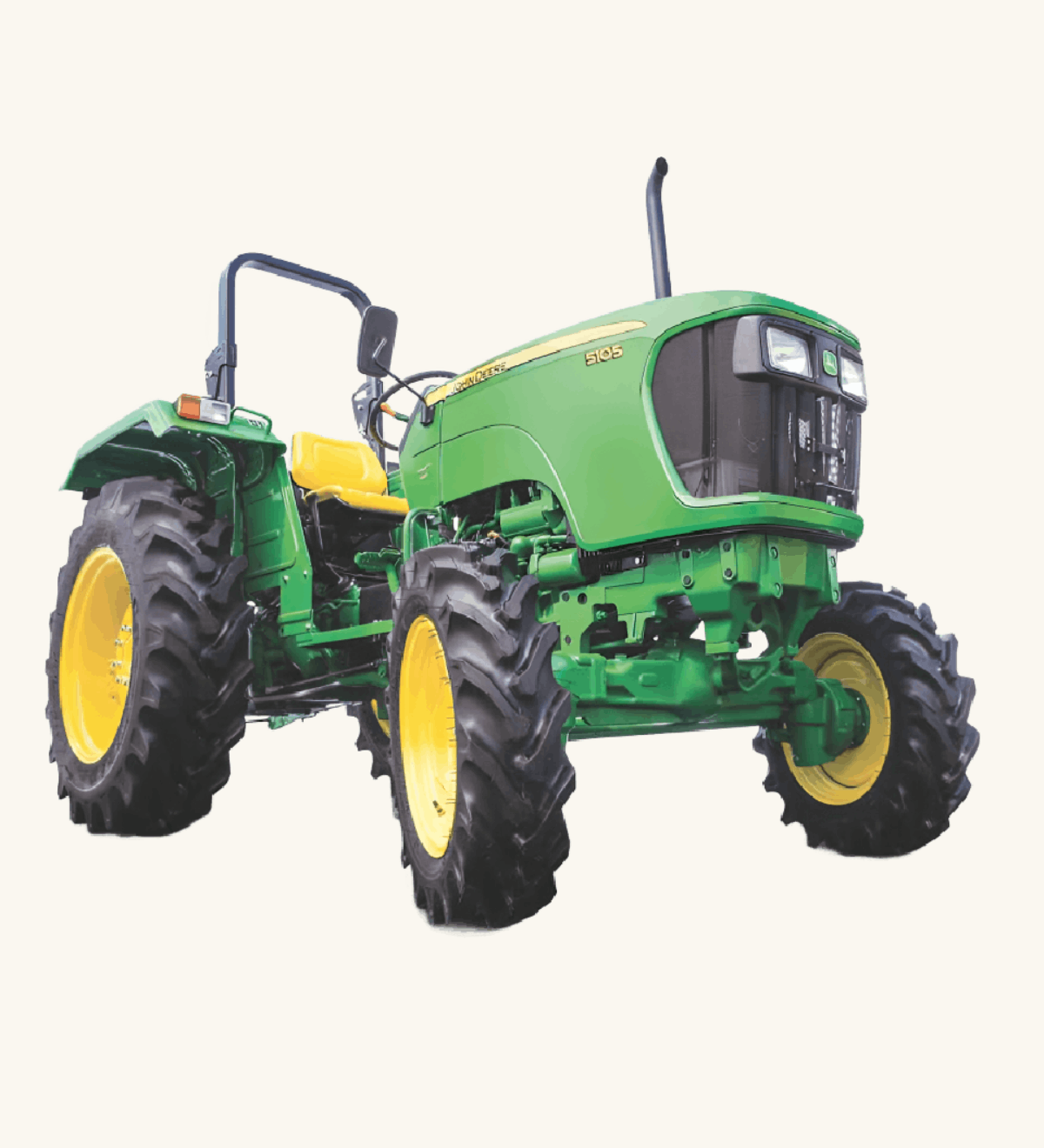

John Deere tractor 5105 is offered in both 2 WD and 4 WD, in the 40 HP tractor segment. Packed with power, this heavy-duty agricultural tractor is best suited for both dry and wet land cultivation.
Look Out For:
- Power steering increases productivity for long working hours.
- 4WD with regular & High lug depth tires.
- Selective control valve for hydraulically operated implements provides ease of operation.
| 2 WD Engine | |
| Type | John Deere 3029D, 40 HP (29.4 kW), 2100 RPM, Coolant cooled with overflow reservoir, Naturally aspirated |
|---|---|
| Air Filter | Dry Type, Dual element |
| Transmission | |
| Clutch | Single/Dual |
| Gear Box | 8 Forward + 4 Reverse, Collarshift |
| Speeds | Forward 2.83 – 31.07 kmph Reverse 4.10 -14.87 kmph |
| Brakes | |
| Brakes | Oil immersed disc brakes |
| Hydraulics | |
| Maximum Lifting Capacity | 1600 kgf |
| 3 Point Linkage | Category - II Automatic depth and draft control (ADDC) |
| Power Take Off | |
| Type | Independent, 6 Splines |
| Standard | 540 @ 2100 ERPM |
| Wheels and Tyres | |
| Front | 6.0 x 16 (0.15 x 0.41 m), 8 PR |
| Rear | 13.6 x 28 (0.34 x 0.71 m), 12 PR |
| Fuel Tank | |
| Capacity | 60 L |
| Accessories |
|
| Factory Fitted Options | Roll over protection structure (ROPS) with deluxe seat and seat belt |
| 4 WD Engine | |
| Type | John Deere 3029D, 40 HP (29.4 kW), 2100 RPM, Coolant cooled with overflow reservoir, Naturally aspirated |
| Air Filter | Dry Type, Dual element |
| Transmission | |
| Clutch | Single/Dual |
| Gear Box | 8 Forward + 4 Reverse, Collarshift |
| Speeds | Forward 2.84 – 31.70 kmph Reverse 3.74 – 13.52 kmph |
| Hydraulics | |
| Maximum Lifting Capacity | 1600 kgf |
| 3 Point Linkage | Category - II Automatic depth and draft control (ADDC) |
| Power Take Off | |
| Type | Independent, 6 Splines |
| Standard | 540 @ 2100 ERPM |
| Wheels and Tyres | |
| Front | 8.0 x 18 (0.20 x 0.46 m), 8 PR |
| Rear | 13.6 x 28 (0.34 x 0.71 m), 12 PR |
| Fuel Tank | |
| Capacity | 60 L |
| Accessories |
|
| Factory Fitted Options | Roll over protection structure (ROPS) with deluxe seat and seat belt Dual clutch |
