- Dual Torque Mode
- Longer service interval
- Combination Switch.
- Wider platform with rear floor extensions
- CleanPro™ for enhanced cooling

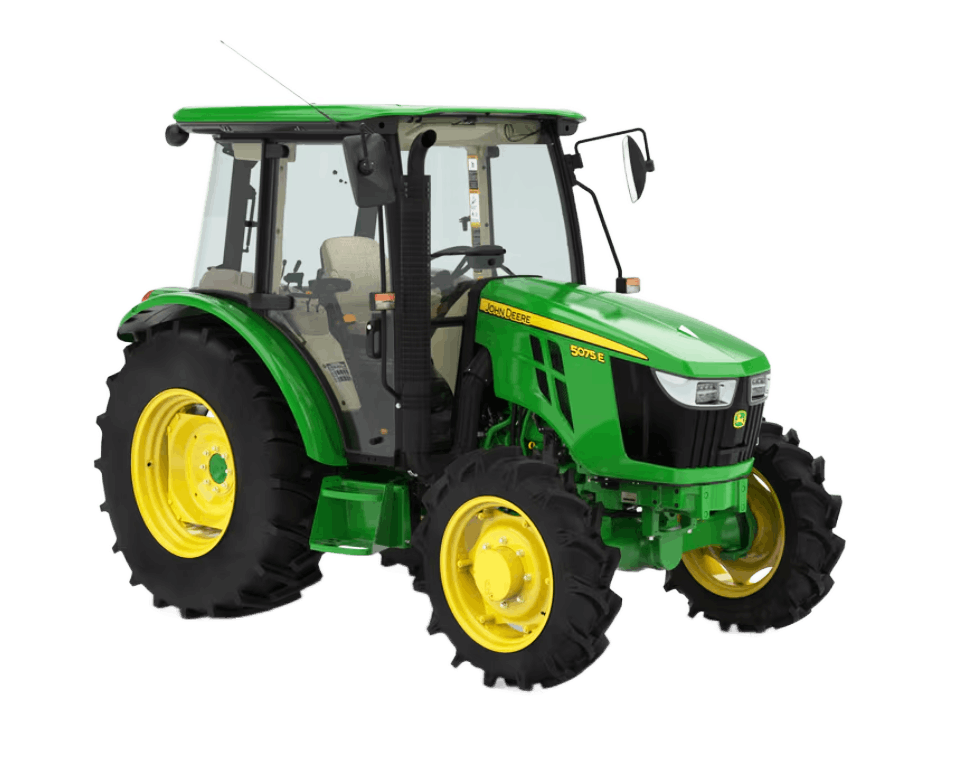

5075E PowerTech™
74 HP, 2100 RPM
John Deere CAB tractors have been designed to provide the customers with a tractor that not only has an international look, but is also technologically advanced. John Deere 5075E is the most powerful and versatile 74 HP John Deere tractor. Loaded with a robust PowerTech™ engine, this tractor complies with the TREM IV emission norms.
Look Out For:
- New styling hood with LED headlamp
- Dual Engine Mode switch (Economy & Standard)
- Increased lifting capacity (2500kgs)
| Engine | |
| Type | John Deere 3029H, 57 HP (42 kW), 2100 RPM, 3 Cylinders, Turbo Charged, HPCR fuel injection system, Coolant cooled with overflow reservoir |
|---|---|
| Air Filter | Dry Type, Dual element |
| Transmission | |
| Clutch | Dual clutch, Dry clutch, EH clutch (optional) |
| Gear Box | 12F + 4R (GearPro Speed) 12F + 12R (PowrReverser Speed) 9F + 3R (Creeper Speed) |
| Speeds | GearPro Speed- 1.9 to 32.6 Kmph, PowerReverser Speed- 1.4 to 31.3 Kmph and Creeper Speed- 0.35 to 0.87 Kmph. |
| Brakes | |
| Brakes | Oil immersed disc brakes |
| Hydraulics | |
| Maximum Lifting capacity | 2500 Kgf (Optional) |
| Steering | |
| Type | Power steering / Tilt steering option (Open operator station), Power steering / Tilt & Telescopic steering (Cab) |
| Power Take off | |
| Type | Independent, 6 Splines |
| Standard | 540 @ 2100 ERPM |
| Economy | 540 @ 1600 ERPM |
| Dimensions and Weight | |
| Total weight | 2WD : 2450 kg, 4WD : 2700 kg |
| Wheel base | 2050 mm |
| Overall length | 3678 mm |
| Overall width | 1982 mm |
| Ground clearance | 2WD : 0520 mm, 4WD : 0425 mm |
| Wheels and Tyres | |
| Open operators station: |
Front - 12.4 x 24, 8 PR, Rear - 18.4 x 30, 12 PR |
| Cab |
Front - 11.2 x 24, 8 PR, Rear - 16.9 x 30, 12 PR |
| Fuel Tank | |
| Open operators station | 71 ltr & Cab - 82 ltr |
| Electrical System | |
| Electrical System |
85 Ah, 12 V battery, Cold charging Amphere - 800
CCA 60 Amp, alternator 12V, 2,5 Kv starter motor |
